SPECTRUM FS

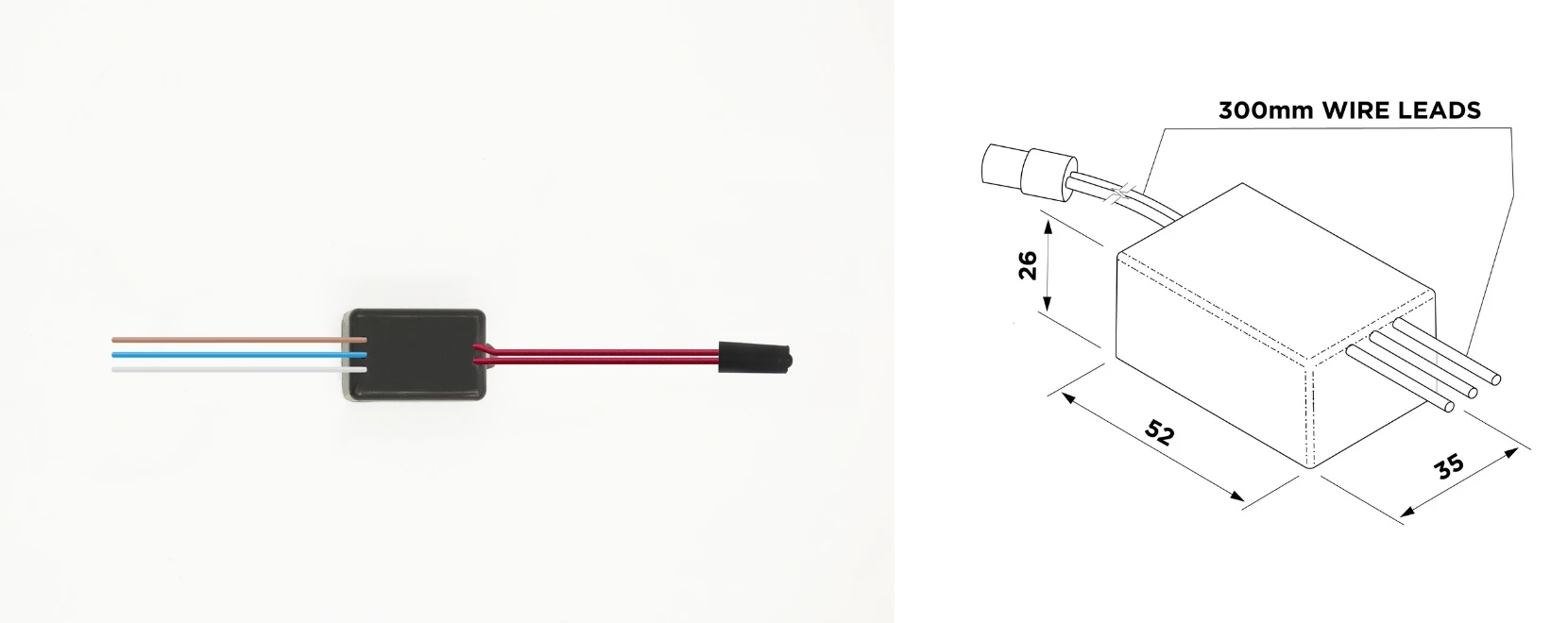

Suitable to mount inside a bulkhead lamp. The light-sensitive element is housed at the end of the extension lead. A hole of diameter 8.0mm is drilled in the wall of the bulkhead. The extension head is then firmly inserted into the hole with the light-sensitive element facing outward. Ideally suited for domestic and industrial bulkheads.
FS10
FS16
- Operating Voltage: 230 VAC ±20%
- Operating Temperature: -35 ºC to +70 ºC
- Light Sensitive Element: Solid-state Phototransistor
- Contact Operation: Electromagnetic Relay
- Relay Approvals: UL & CSA
- Standard Time Delay: 20 seconds (±20%)
- Standard Switch ON LUX Level: 60 LUX (±10%)
- Standard Switch OFF LUX Level: 60 LUX (±10%)
- PCB Assembly ISO 9000: YES
- MOV Surge Protection: YES
- Enclosure Cover Material: Polycarbonate
- Fully Weatherproof: IP54
- Guarantee: 3 Years
- Contact Rating 230 VAC Resistive: 10 Amp
- Contact Configuration (Normally): Closed
- Switching Ratio On: Off (±10%): 1:1
- Power Consumption: > 1 Watt
- Resistive Load (Watt): 2000
- Operating Voltage: 230 VAC ±20%
- Operating Temperature: -35 ºC to +70 ºC
- Light Sensitive Element: Solid-state Phototransistor
- Contact Operation: Electromagnetic Relay
- Relay Approvals: UL & CSA
- Standard Time Delay: 20 seconds (±20%)
- Standard Switch ON LUX Level: 60 LUX (±10%)
- Standard Switch OFF LUX Level: 60 LUX (±10%)
- PCB Assembly ISO 9000: YES
- MOV Surge Protection: YES
- Enclosure Cover Material: Polycarbonate
- Fully Weatherproof: IP54
- Guarantee: 3 Years
- Contact Rating 230 VAC Resistive: 16 Amp
- Contact Configuration (Normally): Closed
- Switching Ratio On: Off (±10%): 1:1
- Power Consumption: > 1 Watt
- Resistive Load (Watt): 3000
