SPECTRUM LSN
The SPECTRUM LSN range has a variety of applications. Automatic day night switching of street lamps, domestic lamps, advertising boards, security lights, neon signs, etc. Method of connection can be by plug-in by using a NEMA socket.

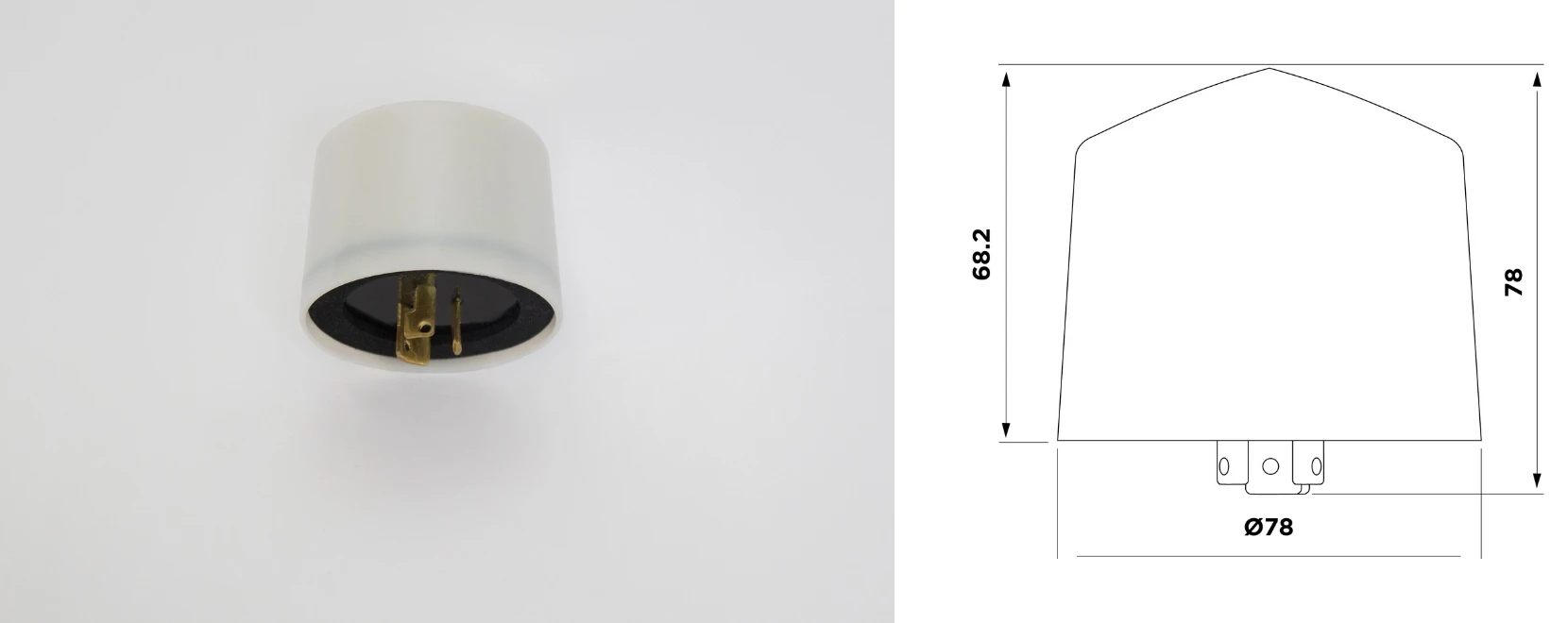

LSN10

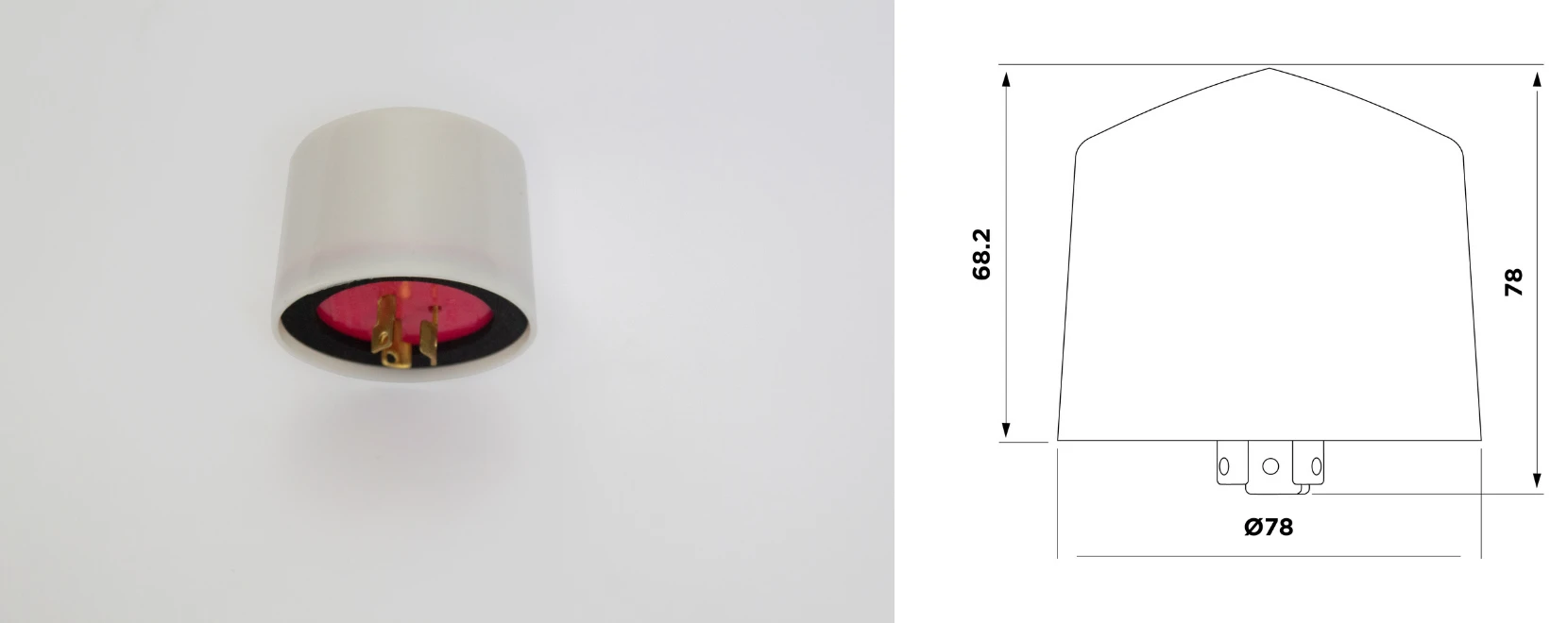

LSN16
LSN20
- Operating Voltage: 230 VAC ±20%
- Operating Temperature: -35 ºC to +70 ºC
- Light Sensitive Element: Solid-state Phototransistor
- Contact Operation: Electromagnetic Relay
- Relay Approvals: UL & CSA
- Standard Time Delay: 20 seconds (±20%)
- Standard Switch ON LUX Level: 60 LUX (±10%)
- Standard Switch OFF LUX Level: 60 LUX (±10%)
- PCB Assembly ISO 9000: YES
- MOV Surge Protection: YES
- Enclosure Cover Material: ACRYLIC - White Top ASA - Base
- Fully Weatherproof: IP65
- Guarantee: 3 Years
- Contact Rating/230 Vac Resistive: 10 Amp
- Contact Configuration (Normally): Closed
- Switching Ratio On: Off (±10%): 1:1
- Power Consumption: >1 Watt
- Resistive Load (Watt): 2000
- BS. 5972:1980 Compliant: YES
- SABS 1777:1999 Compliant: YES
- Operating Voltage: 230 VAC ±20%
- Operating Temperature: -35 ºC to +70 ºC
- Light Sensitive Element: Solid-state Phototransistor
- Contact Operation: Electromagnetic Relay
- Relay Approvals: UL & CSA
- Standard Time Delay: 20 seconds (±20%)
- Standard Switch ON LUX Level: 60 LUX (±10%)
- Standard Switch OFF LUX Level: 60 LUX (±10%)
- PCB Assembly ISO 9000: YES
- MOV Surge Protection: YES
- Enclosure Cover Material: ACRYLIC - White Top ASA - Base
- Fully Weatherproof: IP65
- Guarantee: 3 Years
- Contact Rating/230 Vac Resistive: 16 Amp
- Contact Configuration (Normally): Closed
- Switching Ratio On: Off (±10%): 1:1
- Power Consumption: >1 Watt
- Resistive Load (Watt): 3000
- BS. 5972:1980 Compliant: YES
- SABS 1777:1999 Compliant: YES
- Operating Voltage: 230 VAC ±20%
- Operating Temperature: -35 ºC to +70 ºC
- Light Sensitive Element: Solid-state Phototransistor
- Contact Operation: Electromagnetic Relay
- Relay Approvals: UL & CSA
- Standard Time Delay: 20 seconds (±20%)
- Standard Switch ON LUX Level: 60 LUX (±10%)
- Standard Switch OFF LUX Level: 60 LUX (±10%)
- PCB Assembly ISO 9000: YES
- MOV Surge Protection: YES
- Enclosure Cover Material: ACRYLIC - White Top ASA - Base
- Fully Weatherproof: IP65
- Guarantee: 3 Years
- Contact Rating/230 Vac Resistive: 20 Amp
- Contact Configuration (Normally): Closed
- Switching Ratio On: Off (±10%): 1:1
- Power Consumption: >1 Watt
- Resistive Load (Watt): 5500
- BS. 5972:1980 Compliant: YES
- SABS 1777:1999 Compliant: YES
